Arduino Fingerprint Door Lock

Components Required

1. Arduino Uno
2. Adafruit Fingerprint Sensor
3. 16×2 LCD Display (Optional)
4. Relay Module
5. Connecting Wires

Code Setup

The code uses Adafruit_Fingerprint.h to interface with the fingerprint sensor, set up the serial communication, and handle fingerprint enrollment and identification.

Step-by-Step Guide

1. Circuit Connection

• Connect TX of Fingerprint Sensor to Pin 2 of Arduino.
• Connect RX of Fingerprint Sensor to Pin 3 of Arduino.
• Connect Relay Module to Pin 4 of Arduino.
• Ensure 5V and GND connections are securely made to power the sensor and relay.

2. Code Walkthrough

1. Include Required Libraries

#include <Adafruit_Fingerprint.h>
#include <SoftwareSerial.h>

2. Initialize Components

SoftwareSerial mySerial(2, 3);  // Fingerprint sensor on pins 2 (RX) and 3 (TX)
Adafruit_Fingerprint finger = Adafruit_Fingerprint(&mySerial);
#define RELAY_PIN 4
#define ACCESS_DELAY 3000

3. Setup Function

• Start the serial communication at 9600 baud for debugging.
• Initialize the fingerprint sensor at 57600 baud.
• Check for sensor detection and readiness.
• Set RELAY_PIN as an output and turn it off initially.

void setup() {
   Serial.begin(9600);
   finger.begin(57600);
   if (!finger.verifyPassword()) {
       Serial.println("Fingerprint sensor not found!");
       while (1) { delay(1); }
   }
   pinMode(RELAY_PIN, OUTPUT);
   digitalWrite(RELAY_PIN, HIGH); // Switch off relay initially
}

3. Fingerprint Enrollment and Verification

• Fingerprint Enrollment:
  • The user can assign a unique ID to each fingerprint for storage.
  • Follow the on-screen instructions for enrolling and verifying a fingerprint.
• Fingerprint Verification:
  • The system verifies fingerprints using getFingerprintEnroll() and getFingerPrint().
  • If verified, the system triggers the relay to unlock the connected device for 3 seconds (ACCESS_DELAY).

4. Testing the System

• Upload the code to the Arduino and open the Serial Monitor to follow the enrollment process.
• Once fingerprints are stored, place a finger on the sensor to verify if it grants access by unlocking the relay for the set duration.

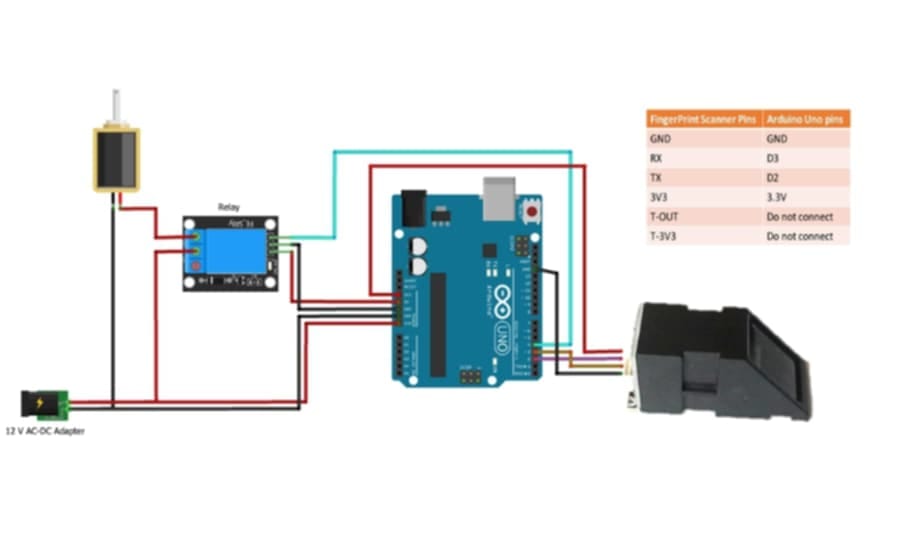

Daigram

FingerPrint_Lock_System Cod

#include <Adafruit_Fingerprint.h>

SoftwareSerial mySerial(2, 3);
Adafruit_Fingerprint finger = Adafruit_Fingerprint(&mySerial);

#define RELAY_PIN       4
#define ACCESS_DELAY    3000 // Keep lock unlocked for 3 seconds


void setup()
{
  // set the data rate for the sensor serial port
  finger.begin(57600);
  delay(5);
  if (finger.verifyPassword())
  {
  }
  else
  {
    while (1) { delay(1); }
  }

  pinMode(RELAY_PIN, OUTPUT);
  digitalWrite(RELAY_PIN, HIGH);   //Switch off relay initially. Relay is LOW level triggered relay so we need to write HIGH.
}

void loop()
{
  if ( getFingerPrint() != -1)
  {
    digitalWrite(RELAY_PIN, LOW);
    delay(ACCESS_DELAY);
    digitalWrite(RELAY_PIN, HIGH);
  }
  delay(50);            //Add some delay before next scan.
}

// returns -1 if failed, otherwise returns ID #
int getFingerPrint()
{
  int p = finger.getImage();
  if (p != FINGERPRINT_OK)  return -1;

  p = finger.image2Tz();
  if (p != FINGERPRINT_OK)  return -1;

  p = finger.fingerFastSearch();
  if (p != FINGERPRINT_OK)  return -1;

  // found a match!
  return finger.fingerID;
}

FingerPrint_Enroll Cod

#include <Adafruit_Fingerprint.h>

SoftwareSerial mySerial(2, 3);
Adafruit_Fingerprint finger = Adafruit_Fingerprint(&mySerial);

uint8_t id;

void setup()
{
  Serial.begin(9600);
  while (!Serial);
  delay(100);

  // set the data rate for the sensor serial port
  finger.begin(57600);
  if (finger.verifyPassword())
  {
    Serial.println("Found fingerprint sensor!");
  }
  else
  {
    Serial.println("Did not find fingerprint sensor :(");
    while (1) { delay(1); }
  }

  Serial.println(F("Reading sensor parameters"));
  finger.getParameters();
  finger.getTemplateCount();
  Serial.print(F("Status: 0x")); Serial.println(finger.status_reg, HEX);
  Serial.print(F("Sys ID: 0x")); Serial.println(finger.system_id, HEX);
  Serial.print(F("Capacity: ")); Serial.println(finger.capacity);
  Serial.print(F("Security level: ")); Serial.println(finger.security_level);
  Serial.print(F("Device address: ")); Serial.println(finger.device_addr, HEX);
  Serial.print(F("Packet len: ")); Serial.println(finger.packet_len);
  Serial.print(F("Baud rate: ")); Serial.println(finger.baud_rate);
  Serial.print(F("Total finger prints stored: ")); Serial.println(finger.templateCount);
}

uint8_t readnumber(void)
{
  uint8_t num = 0;

  while (num == 0)
  {
    while (! Serial.available());
    num = Serial.parseInt();
  }
  return num;
}

void loop()
{
  Serial.println("\n\nReady to enroll a fingerprint!");
  Serial.println("Please type in -1 to delete all the stored finger prints...");
  Serial.println("Please type in the ID # (from 1 to 127) you want to save the finger as...");
  id = readnumber();
  if (id == 0) // ID #0 not allowed, try again!
  {
     return;
  }
  if (id == uint8_t(-1))
  {
    Serial.print("Cleared all finger prints from database");
    finger.emptyDatabase();
    return;
  }

  Serial.print("Enrolling ID #");
  Serial.println(id);
  while (!  getFingerprintEnroll() );
}

uint8_t getFingerprintEnroll()
{

  int p = -1;
  Serial.print("Waiting for valid finger to enroll as #"); Serial.println(id);
  while (p != FINGERPRINT_OK)
  {
    p = finger.getImage();
    switch (p)
    {
    case FINGERPRINT_OK:
      Serial.println("Image taken");
      break;
    case FINGERPRINT_NOFINGER:
      break;
    case FINGERPRINT_PACKETRECIEVEERR:
      Serial.println("Communication error");
      break;
    case FINGERPRINT_IMAGEFAIL:
      Serial.println("Imaging error");
      break;
    default:
      Serial.println("Unknown error");
      break;
    }
  }

  // OK success!

  p = finger.image2Tz(1);
  switch (p)
  {
    case FINGERPRINT_OK:
      Serial.println("Image converted");
      break;
    case FINGERPRINT_IMAGEMESS:
      Serial.println("Image too messy");
      return p;
    case FINGERPRINT_PACKETRECIEVEERR:
      Serial.println("Communication error");
      return p;
    case FINGERPRINT_FEATUREFAIL:
      Serial.println("Could not find fingerprint features");
      return p;
    case FINGERPRINT_INVALIDIMAGE:
      Serial.println("Could not find fingerprint features");
      return p;
    default:
      Serial.println("Unknown error");
      return p;
  }

  Serial.println("Remove finger");
  delay(2000);
  p = 0;
  while (p != FINGERPRINT_NOFINGER)
  {
    p = finger.getImage();
  }
  Serial.print("ID "); Serial.println(id);
  p = -1;
  Serial.println("Place same finger again");
  while (p != FINGERPRINT_OK)
  {
    p = finger.getImage();
    switch (p)
    {
    case FINGERPRINT_OK:
      Serial.println("Image taken");
      break;
    case FINGERPRINT_NOFINGER:
      break;
    case FINGERPRINT_PACKETRECIEVEERR:
      Serial.println("Communication error");
      break;
    case FINGERPRINT_IMAGEFAIL:
      Serial.println("Imaging error");
      break;
    default:
      Serial.println("Unknown error");
      break;
    }
  }

  // OK success!

  p = finger.image2Tz(2);
  switch (p)
  {
    case FINGERPRINT_OK:
      Serial.println("Image converted");
      break;
    case FINGERPRINT_IMAGEMESS:
      Serial.println("Image too messy");
      return p;
    case FINGERPRINT_PACKETRECIEVEERR:
      Serial.println("Communication error");
      return p;
    case FINGERPRINT_FEATUREFAIL:
      Serial.println("Could not find fingerprint features");
      return p;
    case FINGERPRINT_INVALIDIMAGE:
      Serial.println("Could not find fingerprint features");
      return p;
    default:
      Serial.println("Unknown error");
      return p;
  }

  // OK converted!
  Serial.print("Creating model for #");  Serial.println(id);

  p = finger.createModel();
  if (p == FINGERPRINT_OK) {
    Serial.println("Prints matched!");
  } else if (p == FINGERPRINT_PACKETRECIEVEERR) {
    Serial.println("Communication error");
    return p;
  } else if (p == FINGERPRINT_ENROLLMISMATCH) {
    Serial.println("Fingerprints did not match");
    return p;
  } else {
    Serial.println("Unknown error");
    return p;
  }

  Serial.print("ID "); Serial.println(id);
  p = finger.storeModel(id);
  if (p == FINGERPRINT_OK) {
    Serial.println("Stored!");
  } else if (p == FINGERPRINT_PACKETRECIEVEERR) {
    Serial.println("Communication error");
    return p;
  } else if (p == FINGERPRINT_BADLOCATION) {
    Serial.println("Could not store in that location");
    return p;
  } else if (p == FINGERPRINT_FLASHERR) {
    Serial.println("Error writing to flash");
    return p;
  } else {
    Serial.println("Unknown error");
    return p;
  }

  return true;
}
